ATI109 SERIES, Squeezer Sets
FLUSH SQUEEZER SETS
- Manufactured from high-grade shock-resistant tool steel.
- Polished before and after heat treat to purge tool marks and ridges.
- Machined in accordance with MIL-STD GGG-R-425b.
- Blended radius between cup and chamfer eliminates coining.
| PART # | LEGACY # | DESCRIPTION | PIECES | RIVET TYPES | SHANK DIAMETER |
| AT108A-33PC | KIT, CUPPED & FLUSH | 33 | AN470 & AN426 | 3/16″ |
| PART # | LEGACY # | CUP SIZE | RIVET TYPE | BODY LENGTH | BODY DIAMETER | SHANK DIAMETER |

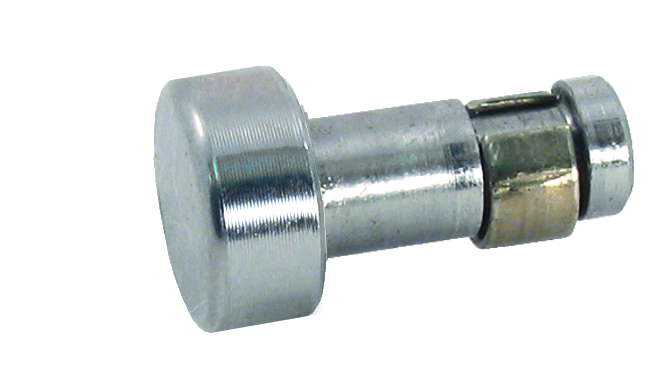

| ATI109AN | AT109AN | FLUSH | AN426 | 1/8″ | 1/2″ | 3/16″ |

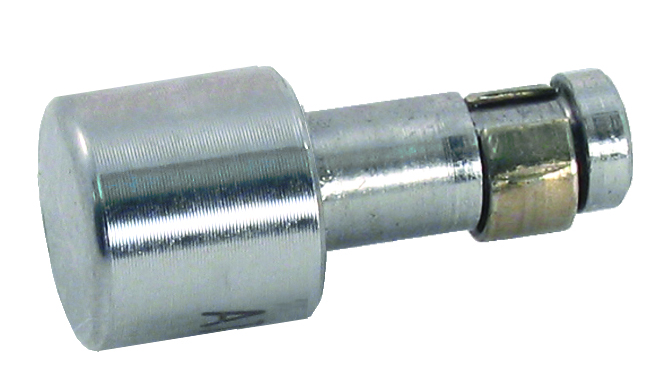

| ATI109AP | AT109AP | FLUSH | AN426 | 1/4″ | 1/2″ | 3/16″ |

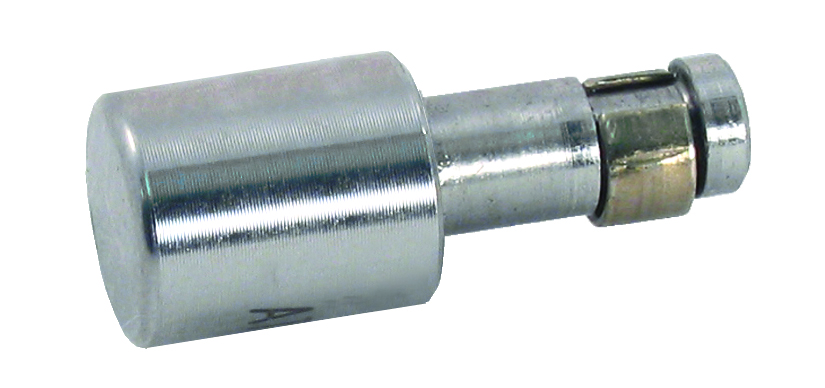

| ATI109AR | AT109AR | FLUSH | AN426 | 3/8″ | 1/2″ | 3/16″ |

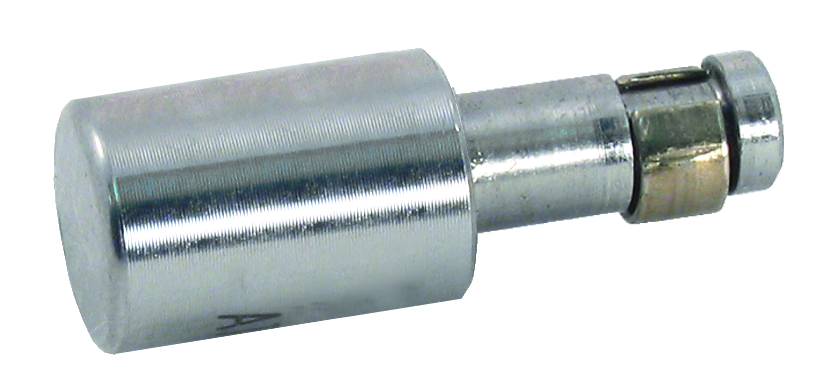

| ATI109AS | AT109AS | FLUSH | AN426 | 1/2″ | 1/2″ | 3/16″ |

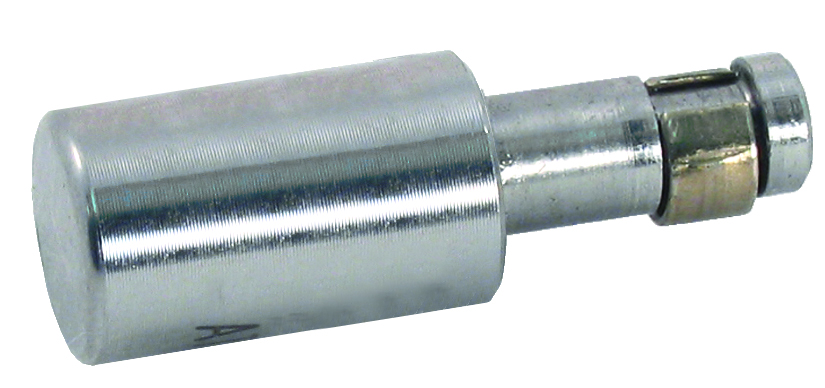

| ATI109AT | AT109AT | FLUSH | AN426 | 5/8″ | 1/2″ | 3/16″ |

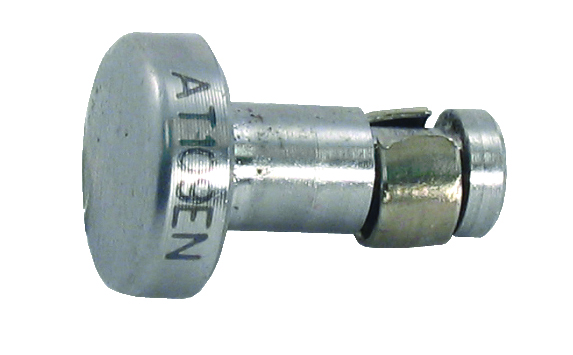

| ATI109EN | AT109EN | FLUSH | AN426 | 1/8″ | 3/8″ | 3/16″ |
| ATI109EP | AT109EP | FLUSH | AN426 | 1/4″ | 3/8″ | 3/16″ |

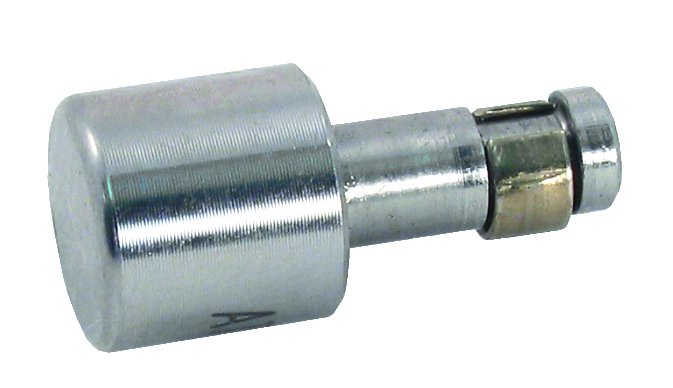

| ATI109ER | AT109ER | FLUSH | AN426 | 3/8″ | 3/8″ | 3/16″ |

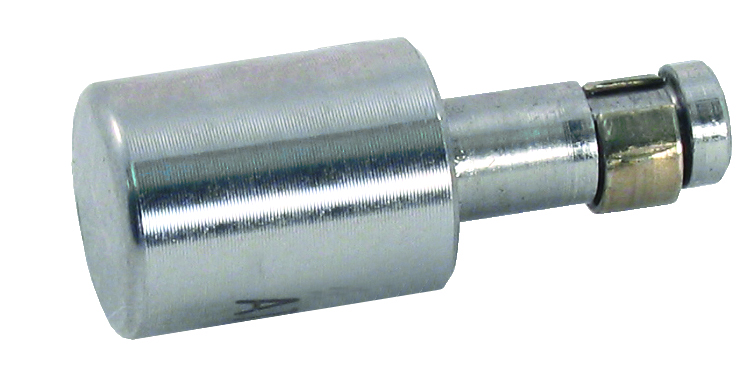

| ATI109ES | AT109ES | FLUSH | AN426 | 1/2″ | 3/8″ | 3/16″ |

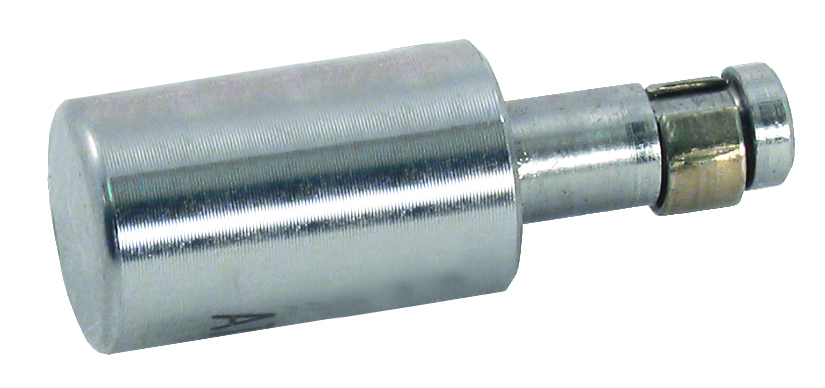

| ATI109ET | AT109ET | FLUSH | AN426 | 5/8″ | 3/8″ | 3/16″ |
Showing all 11 results
