ATI108 SERIES, Squeezer Sets

UNIVERSAL HEAD AN470 (MS20740) CUPPED SQUEEZER SETS

Manufactured from high-grade shock-resistant tool steel.

Polished before and after heat treat to purge tool marks and ridges.

Machined in accordance with MIL-STD GGG-R-425b.

Blended radius between cup and chamfer eliminates coining.

PART #

LEGACY #

DESCRIPTION

PIECES

RIVET TYPES

SHANK DIAMETER

ATI108A33PC

AT108A-33PC

KIT, CUPPED & FLUSH

AN470 & AN426

3/16″

PART #	LEGACY #	CUP SIZE	RIVET TYPE	BODY LENGTH	BODY DIAMETER	SHANK DIAMETER
ATI108AN3/32	AT108AN-3/32	3/32″	AN470	1/8″	3/8″	3/16″
ATI108AN1/8	AT108AN-1/8	1/8″	AN470	1/8″	3/8″	3/16″
ATI108AN5/32	AT108AN-5/32	5/32″	AN470	1/8″	1/2″	3/16″
ATI108AN3/16	AT108AN-3/16	3/16″	AN470	1/8″	1/2″	3/16″
ATI108AP3/32	AT108AP-3/32	3/32″	AN470	1/4″	3/8″	3/16″
ATI108AP1/8	AT108AP-1/8	1/8″	AN470	1/4″	3/8″	3/16″
ATI108AP5/32	AT108AP-5/32	5/32″	AN470	1/4″	1/2″	3/16″
ATI108AP3/16	AT108AP-3/16	3/16″	AN470	1/4″	1/2″	3/16″
ATI108AP1/4	AT108AP-1/4	1/4″	AN470	1/4″	5/8″	3/16″
ATI108AR3/32	AT108AR-3/32	3/32″	AN470	3/8″	3/8″	3/16″

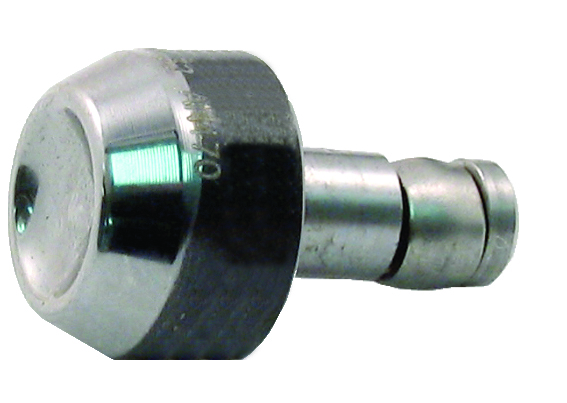

ATI108AR1/8	AT108AR-1/8	1/8″	AN470	3/8″	3/8″	3/16″

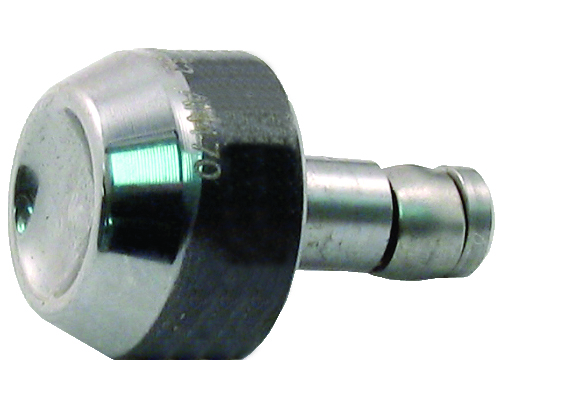

ATI108AR5/32	AT108AR-5/32	5/32″	AN470	3/8″	1/2″	3/16″
ATI108AR3/16	AT108AR-3/16	3/16″	AN470	3/8″	1/2″	3/16″
ATI108AR14	AT108AR-1/4	1/4″	AN470	3/8″	5/8″	3/16″
ATI108AS3/32	AT108AS-3/32	3/32″	AN470	1/2″	3/8″	3/16″

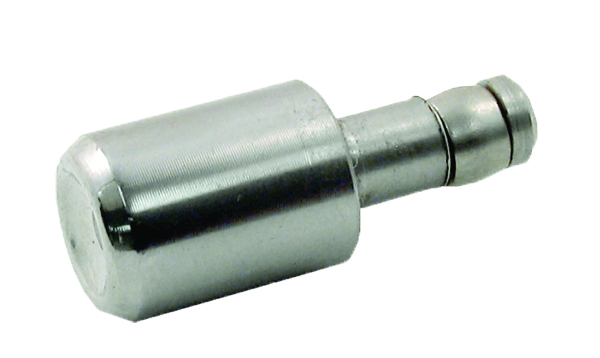

ATI108AS1/8	AT108AS-1/8	1/8″	AN470	1/2″	3/8″	3/16″
ATI108AS5/32	AT108AS-5/32	5/32″	AN470	1/2″	1/2″	3/16″
ATI108AS3/16	AT108AS-3/16	3/16″	AN470	1/2″	1/2″	3/16″
ATI108AS1/4	AT108AS-1/4	1/4″	AN470	1/2″	5/8″	3/16″
ATI108AT3/32	AT108AT-3/32	3/32″	AN470	5/8″	3/8″	3/16″
ATI108AT1/8	AT108AT-1/8	1/8″	AN470	5/8″	3/8″	3/16″
ATI108AT5/32	AT108AT-5/32	5/32″	AN470	5/8″	1/2″	3/16″

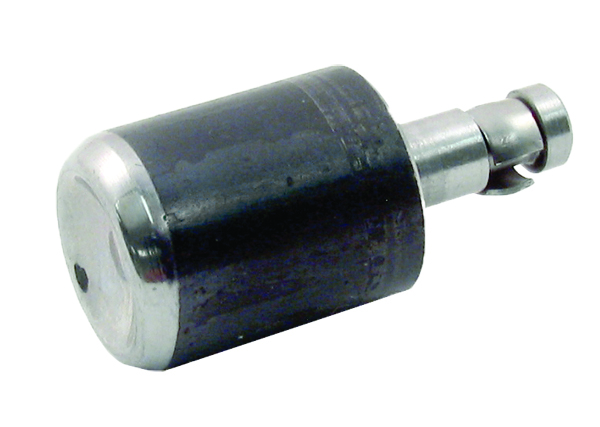

ATI108AT3/16	AT108AT-3/16	3/16″	AN470	5/8″	1/2″	3/16″
ATI108AW3/32	AT108AW-3/32	3/32″	AN470	3/4″	3/8″	3/16″
ATI108AW1/8	AT108AW-1/8	1/8″	AN470	3/4″	3/8″	3/16″
ATI108AW5/32	AT108AW-5/32	5/32″	AN470	3/4″	1/2″	3/16″

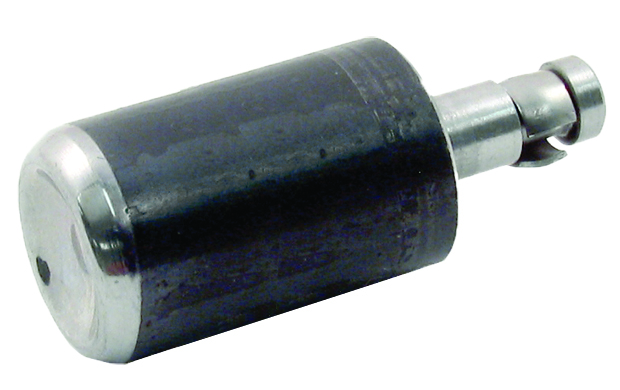

ATI108AW3/16	AT108AW-3/16	3/16″	AN470	3/4″	1/2″	3/16″
