ATI107 SERIES, Sets & Peening

FLUSH RIVET SETS & PEENING TOOLS

STRAIGHT DRIVE


  • Protected with plastic coating to prevent damage during shipment and storage.
  • Blended radius between cup and chamfer. No sharp edges, which coin or mar skin.
  • Machined in accordance with MIL-STD GGG-R-425.
  • Part number stamped designating rivet size and safety notice.
  • Highly polished cup, free of machine marks and ridges.
  • Manufactured from S2 high-grade shock-resistant steel.
  • Chamfered corners.

Beginning with a sound basic design, ATI rivet sets incorporate the ultimate in proper distribution of mass, with correct grain structure, made possible by the forging process of high-grade shock resistant tool steel. These factors along with correct heat-treating procedures eliminate breakage and provide for a structurally sound driven rivet.

Highly polished precision cups are held to exact tolerances, and shanks are accurately ground and chamfered. Identifying symbols stamped on all sets show rivet size, type, and tool number. Each tool is subjected to rigid testing, inspection, and as a final detail the working surface of each unit is coated with clear plastic to prevent damage during shipment.

PART # LEGACY # FACE DIAMETER LENGTH SHANK DIAMETER MATERIAL DESCRIPTION

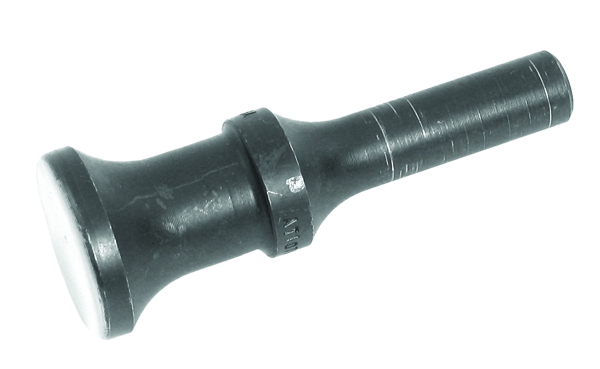

AT107A-1 1″ 2-3/4″ .401 STEEL FLUSH RIVET SET

AT107A-2 1-1/4″ 2-3/4″ .401 STEEL FLUSH RIVET SET
ATI107A-2D AT107A-2D 1″ 3-1/4″ .401 STEEL W/ ALUMINUM INSERT PEENING TOOL

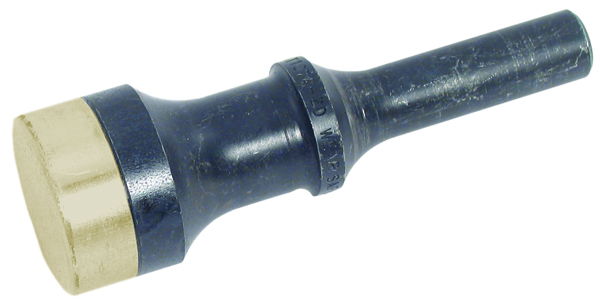

ATI107A2DB AT107A-2D-B 1″ 3-1/4″ .401 STEEL W/ BRASS INSERT PEENING TOOL

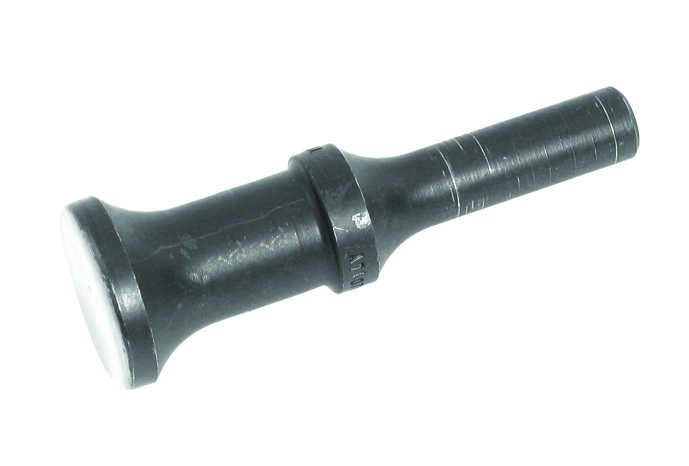

AT107A-3 1-1/4″ 3-1/2″ .401 STEEL FLUSH RIVET SET

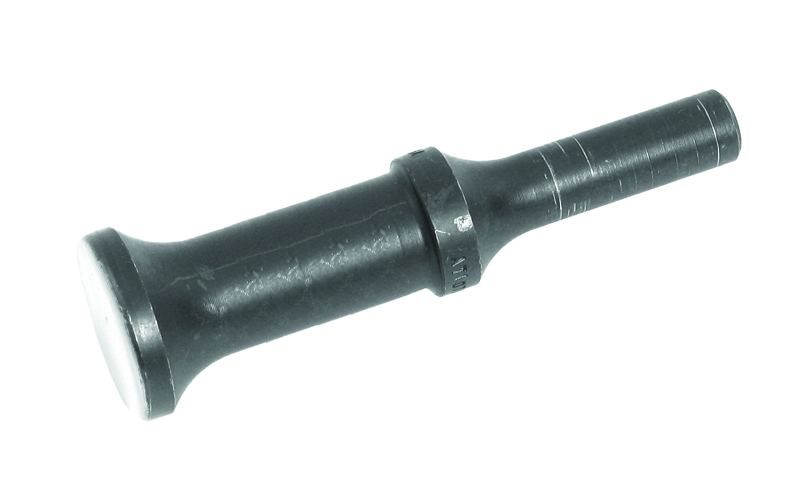

ATI107A-4 AT107A-4 1″ 5-1/2″ .401 STEEL FLUSH RIVET SET

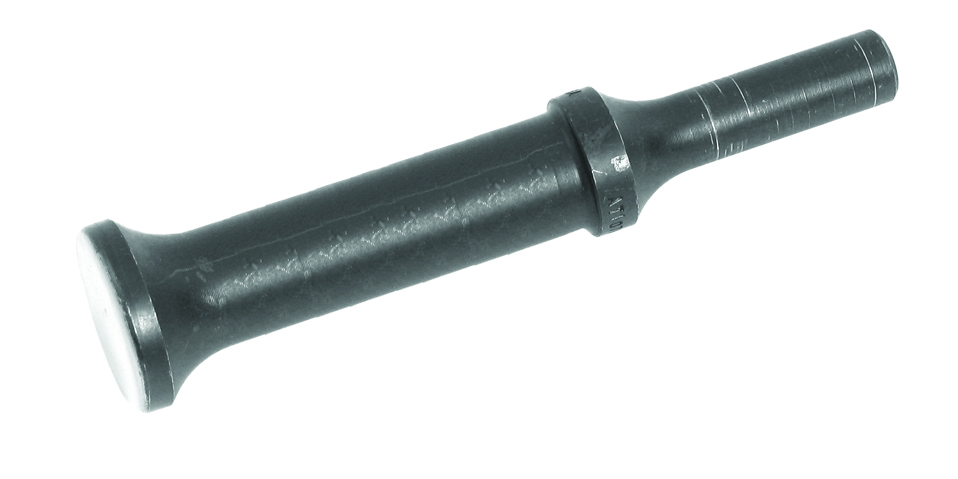

AT107A-6 1″ 7-1/2″ .401 STEEL FLUSH RIVET SET


Showing all 7 results
