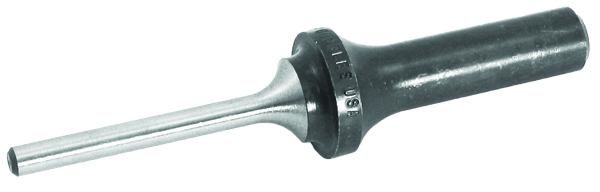

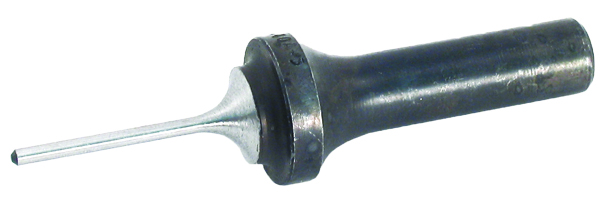

ATI140 SERIES, Punches
HI-SHEAR® KNOCK OUT PUCHES
STRAIGHT DRIVE
- Machined in accordance with MIL-STD GGG-R-425.
- Part number stamped designating rivet size and safety notice.
- Manufactured from S2 high-grade shock-resistant steel.
Beginning with a sound basic design, ATI rivet sets incorporate the ultimate in proper distribution of mass, with correct grain structure, made possible by the forging process of high-grade shock resistant tool steel.
Identifying symbols stamped on all sets show rivet size, type, and tool number. Each tool is subjected to rigid testing, inspection, and as a final detail the working surface of each unit is coated with clear plastic to prevent damage during shipment.
| PART # | LEGACY # | RIVET SIZE | OVERALL LENGTH | SHANK DIAMETER |
| ATI140A-3 | AT140A-3 | 3/32″ | 3-1/2″ | .401 |
| ATI140A-4 | AT140A-4 | 1/8″ | 3-1/2″ | .401 |
| ATI140A-5 | AT140A-5 | 5/32″ | 3-1/2″ | .401 |
| ATI140A-6 | AT140A-6 | 3/16″ | 3-1/2″ | .401 |
| ATI140A-8 | AT140A-8 | 1/4″ | 3-1/2″ | .401 |
| ATI140A-10 | AT140A-10 | 5/16″ | 3-1/2″ | .401 |
| ATI140A-12 | AT140A-12 | 3/8″ | 3-1/2″ | .401 |
Showing all 7 results
