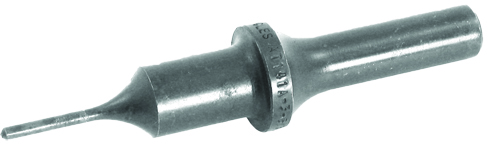

ATI141 SERIES, Punches

KNOCK OUT PUCHES

STRAIGHT DRIVE

Machined in accordance with MIL-STD GGG-R-425.

Part number stamped designating rivet size and safety notice.

Manufactured from S2 high-grade shock-resistant steel.

Beginning with a sound basic design, ATI rivet sets incorporate the ultimate in proper distribution of mass, with correct grain structure, made possible by the forging process of high-grade shock resistant tool steel.

Identifying symbols stamped on all sets show rivet size, type, and tool number. Each tool is subjected to rigid testing, inspection, and as a final detail the working surface of each unit is coated with clear plastic to prevent damage during shipment.

PART #	LEGACY #	RIVET SIZE	OVERALL LENGTH	SHANK DIAMETER
ATI141A33/32	AT141A-3-3/32	3/32″	3-1/2″	.401
ATI141A31/8	AT141A-3-1/8	1/8″	3-1/2″	.401
ATI141A35/32	AT141A-3-5/32	5/32″	3-1/2″	.401
ATI141A33/16	AT141A-3-3/16	3/16″	3-1/2″	.401
ATI141A37/32	AT141A-3-7/32	7/32″	3-1/2″	.401
ATI141A31/4	AT141A-3-1/4	1/4″	3-1/2″	.401
ATI141A35/16	AT141A-3-5/16	5/16″	3-1/2″	.401
ATI141A33/8	AT141A-3-3/8	3/8″	3-1/2″	.401
