Two Lug - Double Wing Std.
ATI518 SERIES NUT PLATE DRILL JIGS
Designed for accurate drilling of rivet holes for plate nuts.
Manufactured with flexible handle to provide hand clearance when jig is in use.

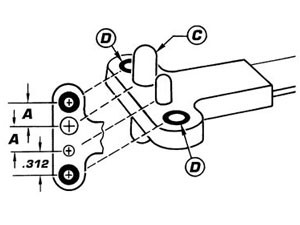

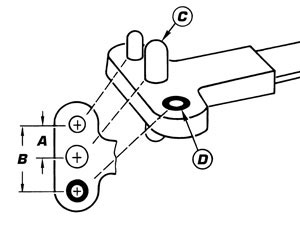

| PART # | LEGACY # | BOLT SIZE REFERENCE | “A” SPACING | “B” SPACING | “C” PILOT DIAMETER | “D” DRILL SIZE |
| ATI518A | AT518A | #6 | .344 | .688 | .139 | #40 |
| ATI518B | AT518B | #8 | .344 | .688 | .164 | #40 |
| ATI518C | AT518C | #10 | .344 | .688 | .191 | #40 |
| ATI518D | AT518D | 1/4″ | .500 | 1.000 | .248 | #40 |
| ATI518E | AT518E | 5/16″ | .500 | 1.000 | .312 | #40 |
| ATI518F | AT518F | 3/8″ | .500 | 1.000 | .372 | #40 |
| ATI518HO | AT518HO | N/A | .375 | .750 | .248 | #40 |
| ATI518M | AT518M | N/A | .375 | .750 | .4375 | #40 |
| ATI518KN | AT518KN | 5/16″ | .500 | 1.000 | .3105 | #30 |
| ATI518N | AT518N | N/A | .500 | 1.190 | .6875 | #30 |
This miscellaneous section illustrates various tools which were designed to meet specific applications in the fabrication of modern aircraft. Constant refinement of original designs has resulted in a line of hand tools offering maximum efficiency and trouble-free use. This has been accomplished by ATI’s metallurgists, designers and field engineers, working with aircraft manufacturers to solve production problems.
Included in this group are strap duplicators, hand rivet squeezers, cable swaging equipment, plate nut drill jigs, chip chasers and deburring tools, and many other precision products which increase production and efficiency.
