Mini Anchornut

ATI518 SERIES NUT PLATE DRILL JIGS



Designed for accurate drilling of rivet holes for plate nuts.

Manufactured with flexible handle to provide hand clearance when jig is in use.

 ATI518 SERIES MINI ANCHORNUT

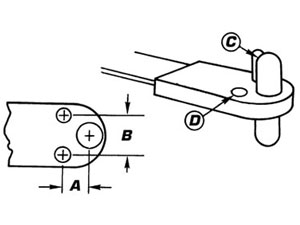

PART # LEGACY # “A” HOLE SPACING “B” HOLE SPACING “C” PILOT DIAMETER “D” DRILL SIZE
ATI518TA AT518TA 0.2500 0.2190 0.1910 #40
ATI518TB AT518TB 0.2810 0.2190 0.2480 #40
ATI518NASDA8 AT518NAS-D-A08 0.2340 0.2190 0.1640 #40
