ATI532 SERIES, Strap Duplicators
These tools provide an accurate method for drilling duplicate matching holes in overlapping sheets. Hole to be duplicated is drilled through bushing when pilot is in place.
| PART # | LEGACY # | DESCRIPTION | OVERALL LENGTH | DRILL SIZE |
| ATI532-61 | AT532-61 | BUSHING TYPE STRAP DUPLICATOR | 6-1/4″ | #40 |
| ATI532-62 | AT532-62 | BUSHING TYPE STRAP DUPLICATOR | 6-1/4″ | #30 |
| ATI532-63 | AT532-63 | BUSHING TYPE STRAP DUPLICATOR | 6-1/4″ | #21 |
| ATI532-65 | AT532-65 | BUSHING TYPE STRAP DUPLICATOR | 6-1/4″ | #10 |
| ATI532-68 | AT532-68 | BUSHING TYPE STRAP DUPLICATOR | 6-1/4″ | 1/4″ |

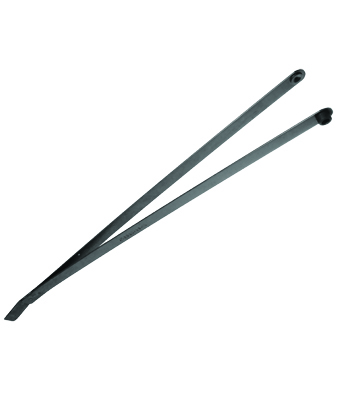

| ATI532C-61 | AT532C-61 | BUSHING TYPE STRAP DUPLICATOR | 13-1/4″ | #40 |
| ATI532C-62 | AT532C-62 | BUSHING TYPE STRAP DUPLICATOR | 13-1/4″ | #30 |
| ATI532C-63 | AT532C-63 | BUSHING TYPE STRAP DUPLICATOR | 13-1/4″ | #21 |
| ATI532C-65 | AT532C-65 | BUSHING TYPE STRAP DUPLICATOR | 13-1/4″ | #10 |
| ATI532C-68 | AT532C-68 | BUSHING TYPE STRAP DUPLICATOR | 13-1/4″ | 1/4″ |

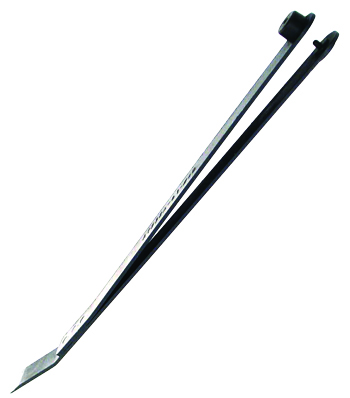

| ATI532A-61 | AT532A-61 | INVERTED PILOT BUSHING TYPE STRAP DUPLICATOR | 6-1/4″ | #40 |
| ATI532A-62 | AT532A-62 | INVERTED PILOT BUSHING TYPE STRAP DUPLICATOR | 6-1/4″ | #30 |
| ATI532A-63 | AT532A-63 | INVERTED PILOT BUSHING TYPE STRAP DUPLICATOR | 6-1/4″ | #21 |
| ATI532A-65 | AT532A-65 | INVERTED PILOT BUSHING TYPE STRAP DUPLICATOR | 6-1/4″ | #10 |
| ATI532A-68 | AT532A-68 | INVERTED PILOT BUSHING TYPE STRAP DUPLICATOR | 6-1/4″ | 1/4″ |

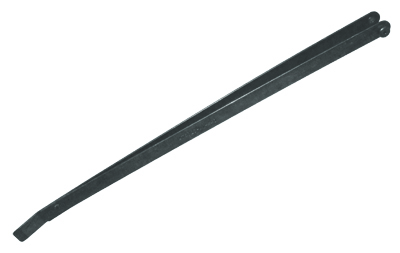

| ATI532D-61 | AT532D-61 | INVERTED PILOT BUSHING TYPE STRAP DUPLICATOR | 13-1/4″ | #40 |
| ATI532D-62 | AT532D-62 | INVERTED PILOT BUSHING TYPE STRAP DUPLICATOR | 13-1/4″ | #30 |
| ATI532D-63 | AT532D-63 | INVERTED PILOT BUSHING TYPE STRAP DUPLICATOR | 13-1/4″ | #21 |
| ATI532D-65 | AT532D-65 | INVERTED PILOT BUSHING TYPE STRAP DUPLICATOR | 13-1/4″ | #10 |
| ATI532D-68 | AT532D-68 | INVERTED PILOT BUSHING TYPE STRAP DUPLICATOR | 13-1/4″ | 1/4″ |
This miscellaneous section illustrates various tools which were designed to meet specific applications in the fabrication of modern aircraft. Constant refinement of original designs has resulted in a line of hand tools offering maximum efficiency and trouble-free use. This has been accomplished by ATI’s metallurgists, designers and field engineers, working with aircraft manufacturers to solve production problems.
Included in this group are strap duplicators, hand rivet squeezers, cable swaging equipment, plate nut drill jigs, chip chasers and deburring tools, and many other precision products which increase production and efficiency.
