ATI589 SERIES, Drill Bushings
Hand held guides and bushings to keep drills and taps 90° to flat or curved surfaces.

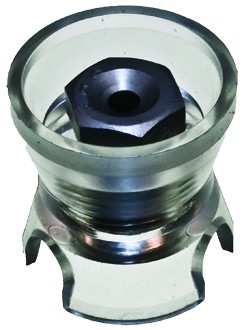

The guide assemblies consist of a clear plastic housing with steel liner bushings and either lock-in lugs or threads for standard slip renewable drill bushings and threaded bushings.

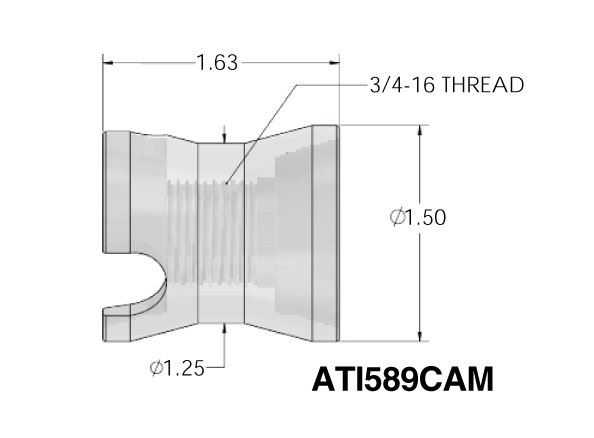

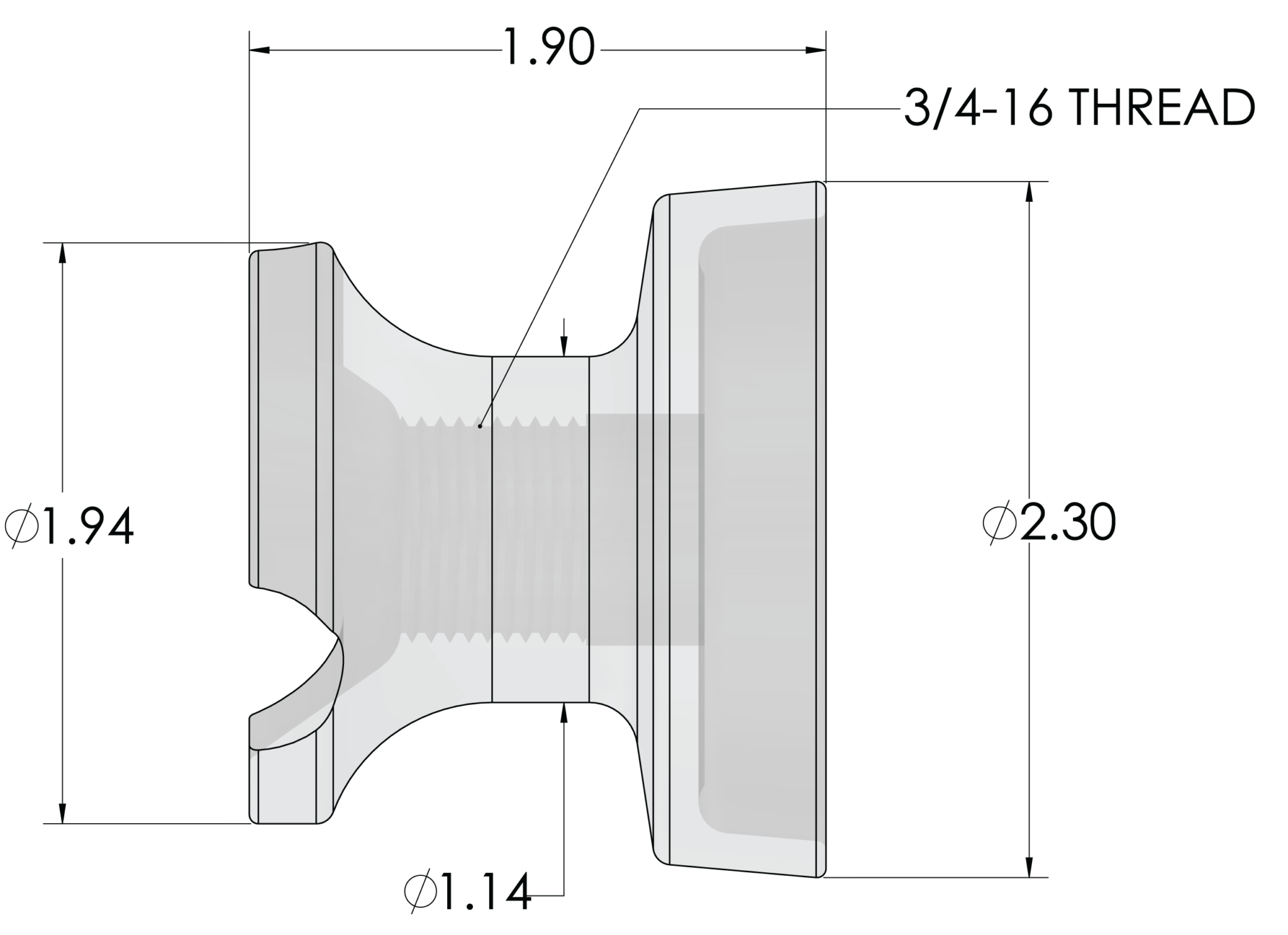

| DRILL BUSHING AND HOUSING ASSEMBLIES | ||||
| ASSEMBLY # / LEGACY # | HOUSING # / LEGACY # | BUSHING # / LEGACY # | DRILL SIZE | THREAD SIZE |
| ATI589A-098 / AT589A-.098 | ATI589AA / AT589AA | ATI589AB098 / AT589AB-.098 | #40 | 1/2″-13 |
| ATI589A-1285 / AT589A-.1285 | ATI589AA / AT589AA | ATI589AB1285 / AT589AB-.1285 | #30 | 1/2″-13 |
| ATI589A-159 / AT589A-.159 | ATI589AA / AT589AA | ATI589AB159 / AT589AB-.159 |
#21 | 1/2″-13 |
| ATI589A161 / AT589A-.161 | ATI589AA / AT589AA | ATI589AB-161 / AT589AB-.161 |
#20 | 1/2″-13 |
| ATI589A-1875 / AT589A-.1875 | ATI589AA / AT589AA | ATI589AB1875 / AT589AB-1875 |
3/16″ | 1/2″-13 |
| ATI589A-1935 / AT589A-.1935 | ATI589AA / AT589AA | ATI589AB1935 / AT589AB-.1935 |
#10 | 1/2″-13 |
| ATI589A2187 / AT589A-.2187 | ATI589AA / AT589AA | ATI589AB2187 / AT589AB-.2187 | 7/32″ | 1/2″-13 |
| ATI589A250 / AT589A-.250 | ATI589AA / AT589AA | ATI589AB250 / AT589AB-.250 | 1/4″ | 1/2″-13 |
| ATI589A257 / AT589A-.257 | ATI589AA / AT589AA | ATI589AB-257 / AT589AB-.257 | F | 1/2″-13 |
| DRILL BUSHING HOUSINGS | ||||
| PART # | LEGACY # | DESCRIPTION | INTERNAL | USE WITH |
| ATI589AA | AT589AA | DRILL GUIDE HOUSING | 1/2″-13 FEMALE | ATI589AB SERIES DRILL BUSHINGS |

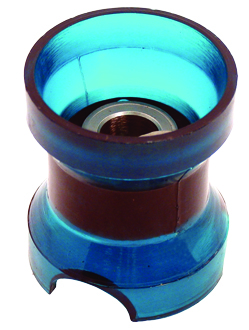

| ATI589DA | AT589DA | FLANGE LOCK GUIDE HOUSING | 5/16″ SLIP RENEWABLE | DRILL SIZES #80 (.0135) – #10 (.1935) |
| ATI589EA | AT589EA | FLANGE LOCK GUIDE HOUSING | 1/2″ SLIP RENEWABLE | DRILL SIZES #28 (.1405) – 11/32″ (.3438) |
| DRILL BUSHINGS | |||
| PART # | LEGACY # | DRILL SIZE | THREAD SIZE |
| ATI589AB098 | AT589AB-.098 | #40 | 1/2″-13 |
| ATI589AB1285 | AT589AB-.1285 | #30 | 1/2″-13 |
| ATI589AB1562 | AT589AB-.1562 | 5/32″ | 1/2″-13 |
| ATI589AB159 | AT589AB-.159 | #21 | 1/2″-13 |
| ATI589AB-161 | AT589AB-.161 | #20 | 1/2″-13 |
| ATI589AB1875 | AT589AB-.1875 | 3/16″ | 1/2″-13 |
| ATI589AB-190 | AT589AB-.190 | .190 | 1/2″-13 |

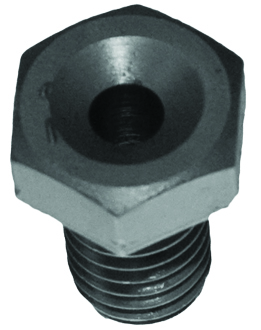

| ATI589AB1935 | AT589AB-.1935 | #10 | 1/2″-13 |
| ATI589AB2187 | AT589AB-.2187 | 7/32″ | 1/2″-13 |
| ATI589AB2460 | AT589AB-.2460 | D | 1/2″-13 |
| ATI589AB250 | AT589AB-.250 | 1/4″ | 1/2″-13 |
| ATI589AB-257 | AT589AB-.257 | F | 1/2″-13 |
| ATI589AB-281 | AT589AB-.2812 | 9/32″ | 3/4″-16 |
| ATI589AB-310 | AT589AB-.310 | .310 | 3/4″-16 |
| ATI589AB3125 | AT589AB-.3125 | 5/16″ | 3/4″-16 |
