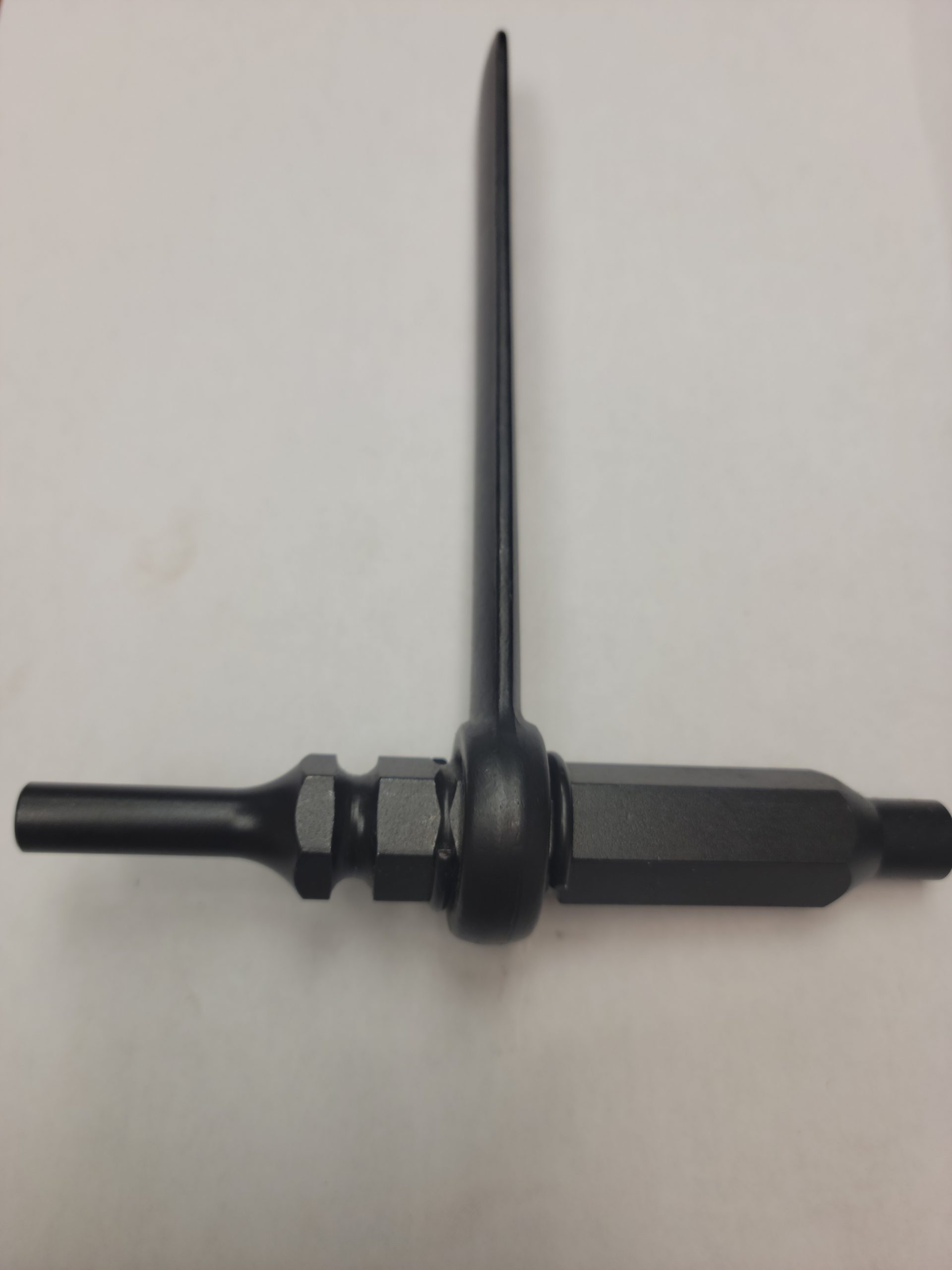

ATI540 SERIES, Screw Removal
These tools are useful in removing screws and screwdriver bits that are corroded and cannot be loosened by conventional methods without skin damage. They are machined with a .401 shank to fit most standard rivet guns. BS & BL models desiged for Boeing.
| PART # | LEGACY # | DESCRIPTION | DRIVE | SHANK | OVERALL LENGTH |

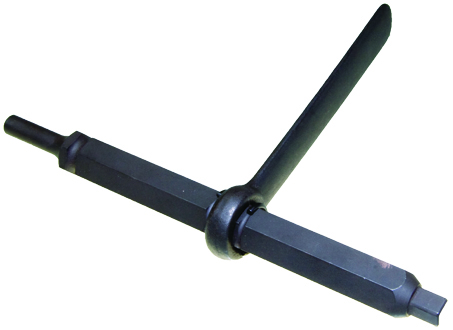

| ATI540 | AT540 | SCREW REMOVAL TOOL | 3/8″ SQUARE | .401 | 9″ |

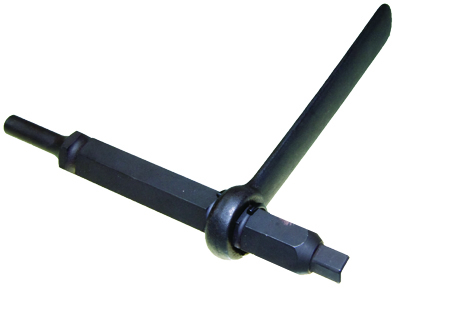

| ATI540S | AT540S | SCREW REMOVAL TOOL | 3/8″ SQUARE | .401 | 4-1/2″ |
| ATI540BS-5 | AT540BS-5 | SCREW REMOVAL TOOL | FOR 1/4″ HEX SCREWDRIVER BIT | .401 | 5-1/2″ |
| ATI540BL-7 | AT540BL-7 | SCREW REMOVAL TOOL | FOR 1/4″ HEX SCREWDRIVER BIT | .401 | 7-1/2″ |
| PART # | LEGACY # | DESCRIPTION | DRIVE | USE WITH | OVERALL LENGTH |

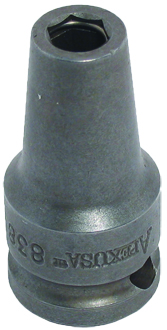

| ATI540SE-5 | AT540SE-5 | HEX BIT ADAPTOR | 3/8″ SQUARE TO 1/4″ HEX | ATI540 & ATI540S | 5-1/2″ |
This miscellaneous section illustrates various tools which were designed to meet specific applications in the fabrication of modern aircraft. Constant refinement of original designs has resulted in a line of hand tools offering maximum efficiency and trouble-free use. This has been accomplished by ATI’s metallurgists, designers and field engineers, working with aircraft manufacturers to solve production problems.
Included in this group are strap duplicators, hand rivet squeezers, cable swaging equipment, plate nut drill jigs, chip chasers and deburring tools, and many other precision products which increase production and efficiency.
