ATI429 SERIES, Micro Milling
Recognized throughout the industry as a leading producer of quality cutting tools, ATI Tools give the industry tools that are designed for high-rate production in the full range of metals used in aircraft manufacturing and maintenance.
The tools contained in this section are made of the finest tool steel and carbides. The cutters are carefully heat-treated, precision ground for correct cutting angles and proper clearance, then thoroughly checked to ensure accurate cutting without chatter. After final inspection, all tools are dipped in a protective plastic coating for shipment and storage.
A variety of microstop countersink units and accessories have been designed to present a versatile selection of tools for all working surfaces and areas.
| PART # | LEGACY # | CUTTER CAPACITY | POWER | DEPTH ADJUSTMENT | WEIGHT | INCUDES |

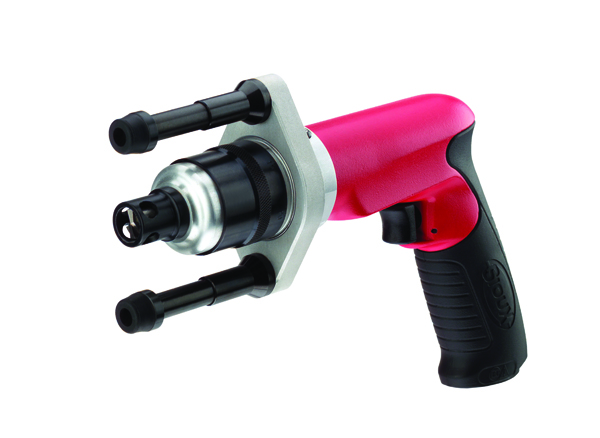

| ATI429SXC | AT429SXC | 3/4″ | .75 HP @ 20K RPM | .0005 INCREMENTAL | 2-1/2 LBS. | SIOUX MOTOR, ATI429A-4 SKIRT |
| PART # | LEGACY # | DESCRIPTION | DIAMETER | USED WITH |
| ATI429A-1 | AT429A-1 | MICROMILLER SKIRT | 5/16″ | ATI429B-1 CARBIDE CUTTER & ATI429SXC MICROMILLER |
| ATI429A-2 | AT429A-2 | MICROMILLER SKIRT | 3/8″ | ATI429B2 CARBIDE CUTTER & ATI429SXC MICROMILLER |
| ATI429A-3 | AT429A-3 | MICROMILLER SKIRT | 7/16″ | ATI429B-3 CARBIDE CUTTER & ATI429SXC MICROMILLER |
| ATI429A-4 | AT429A-4 | MICROMILLER SKIRT | 1/2″ | ATI429B-4 CARBIDE CUTTER & ATI429SXC MICROMILLER |
| ATI429A-5 | AT429A-5 | MICROMILLER SKIRT | 9/16″ | ATI429B-5 CARBIDE CUTTER & ATI429SXC MICROMILLER |
| ATI429A-6 | AT429A-6 | MICROMILLER SKIRT | 5/8″ | ATI429B-6 CARBIDE CUTTER & ATI429SXC MICROMILLER |

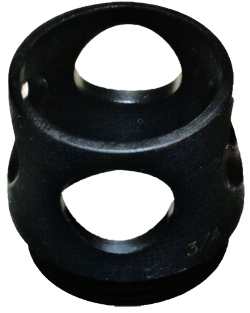

| ATI429A-7 | AT429A-7 | MICROMILLER SKIRT | 3/4″ | ATI429B-7 CARBIDE CUTTER & ATI429SXC MICROMILLER |
| ATI429B-1 | AT429B-1 | MICROMILLER CARBIDE CUTTER | 5/16″ | ATI429A-1 SKIRT & ATI429SXC MICROMILLER |
| ATI429B2 | AT429B-2 | MICROMILLER CARBIDE CUTTER | 3/8″ | ATI429A-2 SKIRT & ATI429SXC MICROMILLER |
| ATI429B-3 | AT429B-3 | MICROMILLER CARBIDE CUTTER | 7/16″ | ATI429A-3 SKIRT & ATI429SXC MICROMILLER |
| ATI429B-4 | AT429B-4 | MICROMILLER CARBIDE CUTTER | 1/2″ | ATI429A-4 SKIRT & ATI429SXC MICROMILLER |
| ATI429B-5 | AT429B-5 | MICROMILLER CARBIDE CUTTER | 9/16″ | ATI429A-5 SKIRT & ATI429SXC MICROMILLER |
| ATI429B-6 | AT429B-6 | MICROMILLER CARBIDE CUTTER | 5/8″ | ATI429A-6 SKIRT & ATI429SXC MICROMILLER |
| ATI429B-7 | AT429B-7 | MICROMILLER CARBIDE CUTTER | 3/4″ | ATI429A-7 SKIRT & ATI429SXC MICROMILLER |
Showing all 15 results
