ATI413 SERIES, Hole Saws

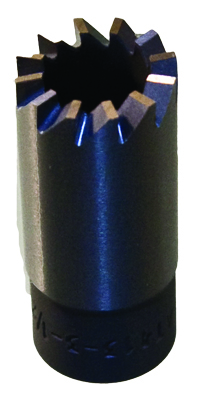

FINE TOOTH SERIES HOLE SAWS
HIGH SPEED STEEL
For cutting thin skins and corrugations in aluminum, steel, and other non-ferrous material. Can be resharpened many times and is designed for use in portable power units or in standard machine tools. Use with ATI415 SERIES Arbors.
HOLE SAW SIZES 1-15 TAPPED W/ 5/16-24 THREAD
HOLE SAW SIZES 16-59 TAPPED W/ 1/2-20 THREAD
Recognized throughout the industry as a leading producer of quality cutting tools, ATI Tools give the industry tools that are designed for high-rate production in the full range of metals used in aircraft manufacturing and maintenance.
The tools contained in this section are made of the finest tool steel and carbides. The cutters are carefully heat-treated, precision ground for correct cutting angles and proper clearance, then thoroughly checked to ensure accurate cutting without chatter. After final inspection, all tools are dipped in a protective plastic coating for shipment and storage.
A variety of microstop countersink units and accessories have been designed to present a versatile selection of tools for all working surfaces and areas.
PART # | LEGACY # | DIAMETER | THREAD |
ATI413-1 | AT413-1 | 3/8″ | 5/16-24 |
ATI413-2 | AT413-2 | 7/16″ | 5/16-24 |
ATI4132X | AT413-2X | 15/32″ | 5/16-24 |
ATI413-3 | AT413-3 | 1/2″ | 5/16-24 |
ATI413-4 | AT413-4 | 9/16″ | 5/16-24 |
ATI413-5 | AT413-5 | 5/8″ | 5/16-24 |
ATI4135X | AT413-5X | 21/32″ | 5/16-24 |
ATI4136 | AT413-6 | 11/16″ | 5/16-24 |
ATI413-7 | AT413-7 | 3/4″ | 5/16-24 |
ATI4137X | AT413-7X | 25/32″ | 5/16-24 |
ATI413-8 | AT413-8 | 13/16″ | 5/16-24 |
ATI413-9 | AT413-9 | 7/8″ | 5/16-24 |
ATI4139X | AT413-9X | 29/32″ | 5/16-24 |
ATI41310 | AT413-10 | 15/16″ | 5/16-24 |
ATI41310X | AT413-10X | 31/32″ | 5/16-24 |
ATI413-11 | AT413-11 | 1″ | 5/16-24 |
ATI413-12 | AT413-12 | 1-1/16″ | 5/16-24 |
ATI413-13 | AT413-13 | 1-1/8″ | 5/16-24 |
ATI413-14 | AT413-14 | 1-3/16″ | 5/16-24 |
ATI413-15 | AT413-15 | 1-1/4″ | 5/16-24 |
ATI413-17 | AT413-17 | 1-3/8″ | 1/2-20 |
ATI41319 | AT413-19 | 1-1/2″ | 1/2-20 |
ATI41323 | AT413-23 | 1-3/4″ | 1/2-20 |
ATI41330 | AT413-30 | 2-3/16″ | 1/2-20 |
ATI413-31 | AT413-31 | 2-1/4″ | 1/2-20 |
