Swaging & Trim Dies
FOR USE WITH ATI520D, ATI520J, & ADAPTED ATI520H
ALL SWAGING DIES SOLD IN PAIRSTRIM DIES SOLD INDIVIDUALLY
| PART # | LEGACY # | DESCRIPTION | CABLE DIAMETER | TERMINAL REFERENCE |

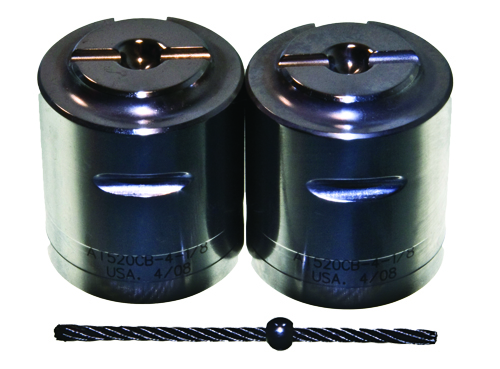

| ATI520CB-2 | AT520CB-2 | FOR PLAIN BALL END TERMINALS | 1/16″ | RA2487 |
| ATI520CB-3 | AT520CB-3 | FOR PLAIN BALL END TERMINALS | 1/32″ | RA2487 |
| ATI520CB-4 | AT520CB-4 | FOR PLAIN BALL END TERMINALS | 1/8″ | RA2487 |

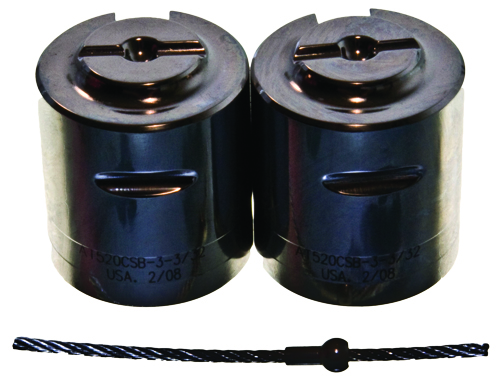

| ATI520CSB-2 | AT520CSB-2 | FOR SINGLE SHANK BALL END TERMINALS | 1/16″ | MS20664-2 |
| ATI520CSB-3 | AT520CSB-3 | FOR SINGLE SHANK BALL END TERMINALS | 1/32″ | MS20664-3 |
| ATI520CSB-4 | AT520CSB-4 | FOR SINGLE SHANK BALL END TERMINALS | 1/8″ | MS20664-4 |
| ATI520CSB-5 | AT520CSB-5 | FOR SINGLE SHANK BALL END TERMINALS | 5/32″ | MS20664-5 |
| ATI520CSB-6 | AT520CSB-6 | FOR SINGLE SHANK BALL END TERMINALS | 3/16″ | MS20664-6 |

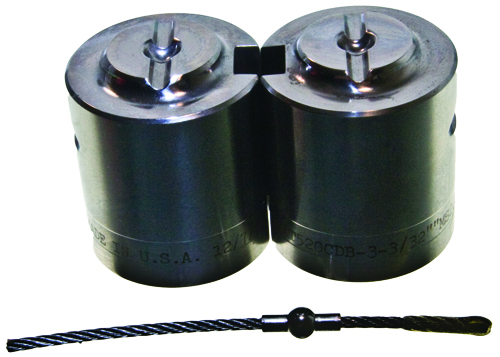

| ATI520CDB-2 | AT520CDB-2 | FOR DOUBLE SHANK BALL END TERMINALS | 1/16″ | MS20663-2 |
| ATI520CDB-3 | AT520CDB-3 | FOR DOUBLE SHANK BALL END TERMINALS | 1/32″ | MS20663-3 |
| ATI520CDB-4 | AT520CDB-4 | FOR DOUBLE SHANK BALL END TERMINALS | 1/8″ | MS20663-4 |
| ATI520CDB-5 | AT520CDB-5 | FOR DOUBLE SHANK BALL END TERMINALS | 5/32″ | MS20663-5 |
| ATI520CDB-6 | AT520CDB-6 | FOR DOUBLE SHANK BALL END TERMINALS | 3/16″ | MS20663-6 |
| PART # | LEGACY # | DESCRIPTION | CABLE DIAMETER | TERMINAL DASH NUMBER |
| ATI520CS-2 | AT520CS-2 | FOR SLEEVE TYPE TERMINALS | 1/16″ | -2 |
| ATI520CS-3 | AT520CS-3 | FOR SLEEVE TYPE TERMINALS | 1/32″ | -3 |
| ATI520CS-4 | AT520CS-4 | FOR SLEEVE TYPE TERMINALS | 1/8″ | -4 |
| ATI520CS-5 | AT520CS-5 | FOR SLEEVE TYPE TERMINALS | 5/32″ | -5 |
| ATI520CS-6 | AT520CS-6 | FOR SLEEVE TYPE TERMINALS | 3/16″ | -6 |
| ATI520CS-7 | AT520CS-7 | FOR SLEEVE TYPE TERMINALS | 7/32″ | -7 |
| ATI520CS-8 | AT520CS-8 | FOR SLEEVE TYPE TERMINALS | 1/4″ | -8 |
| PART # |
LEGACY # |
DESCRIPTION | CABLE DIAMETER | CUTTER / DIE |

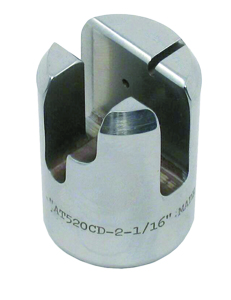

| ATI520CD-2 | AT520CD-2 | TRIM DIE | 1/16″ | ATI520CP-2 CUTTER |
| ATI520CD-3 | AT520CD-3 | TRIM DIE | 1/32″ | ATI520CP-3 CUTTER |
| ATI520CD-4 | AT520CD-4 | TRIM DIE | 1/8″ | ATI520CP-4 CUTTER |
| ATI520CD-5 | AT520CD-5 | TRIM DIE | 5/32″ | ATI520CP-5 CUTTER |
| ATI520CD-6 | AT520CD-6 | TRIM DIE | 3/16″ | ATI520CP-6 CUTTER |
| ATI520CD-7 | AT520CD-7 | TRIM DIE | 7/32″ | ATI520CP-7 CUTTER |
| ATI520CD-8 | AT520CD-8 | TRIM DIE | 1/4″ | ATI520CP-8 CUTTER |
| ATI520CP-2 | AT520CP-2 | CABLE CUT-OFF | 1/16″ | ATI520CD-2 DIE |
| ATI520CP-3 | AT520CP-3 | CABLE CUT-OFF | 1/32″ | ATI520CD-3 DIE |
| ATI520CP-4 | AT520CP-4 | CABLE CUT-OFF | 1/8″ | ATI520CD-4 DIE |
| ATI520CP-5 | AT520CP-5 | CABLE CUT-OFF | 5/32″ | ATI520CD-5 DIE |
| ATI520CP-6 | AT520CP-6 | CABLE CUT-OFF | 3/16″ | ATI520CD-6 DIE |
| ATI520CP-7 | AT520CP-7 | CABLE CUT-OFF | 7/32″ | ATI520CD-7 DIE |
| ATI520CP-8 | AT520CP-8 | CABLE CUT-OFF | 1/4″ | ATI520CD-8 DIE |
This miscellaneous section illustrates various tools which were designed to meet specific applications in the fabrication of modern aircraft. Constant refinement of original designs has resulted in a line of hand tools offering maximum efficiency and trouble-free use. This has been accomplished by ATI’s metallurgists, designers and field engineers, working with aircraft manufacturers to solve production problems.
Included in this group are strap duplicators, hand rivet squeezers, cable swaging equipment, plate nut drill jigs, chip chasers and deburring tools, and many other precision products which increase production and efficiency.
